- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with EN 1677-3
- Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
- Magnaflux crack detection is performed 100% on each batch
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100

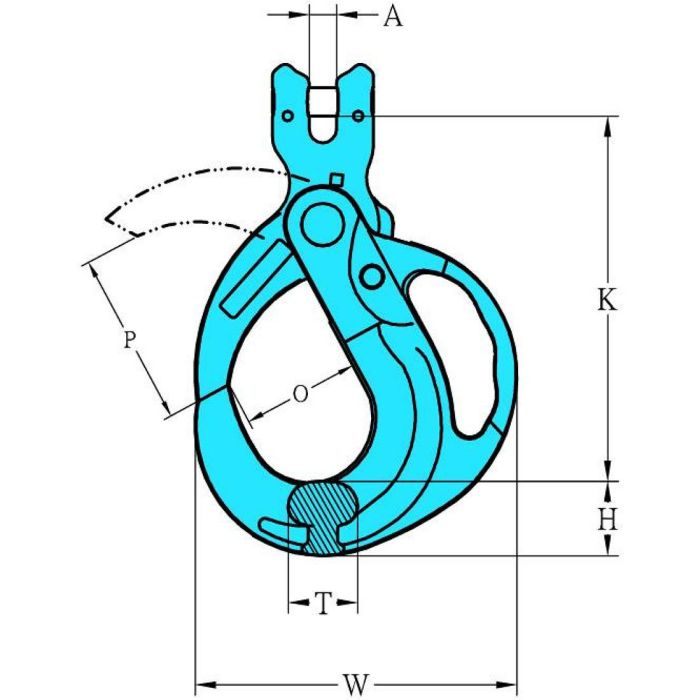

- Dimensions:
- A: 19.1mm (0.8″)
- H: 47mm (1.9″)
- K: 244mm (9.6″)
- O: 78mm (3.1″)
- P: 114mm (4.5″)
- T: 39mm (1.5″)
- W: 212mm (8.3″)
- Fits Chain Size: 16mm (5/8″)
- Working Load Limit: 10 tons (20,000 lbs)
