- Proof Load tested at 2.5 times the WLL with batch certification
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Minimum tempering temperature of 400°C
- Manufactured in accordance with EN 1677-3
- Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
- Magnaflux crack detection is performed 100% on each batch
- Design Factor 4:1
- Material: Alloy Steel
- Finish: Painted
- Grade: 100

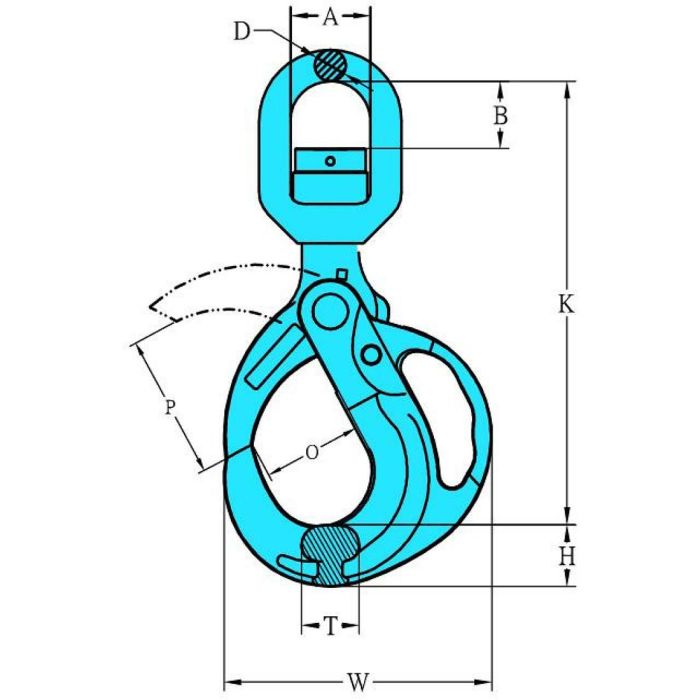

- Dimensions:
- A: 46mm (1.8″)
- B: 44mm (1.7″)
- D: 21mm (0.8″)
- H: 39mm (1.5″)
- K: 283mm (11.1″)
- O: 64mm (2.5″)
- P: 80mm (3.1″)
- Fits Chain Size: 13mm (1/2″)
- Working Load Limit: 6.7 tons (13,400 lbs)
