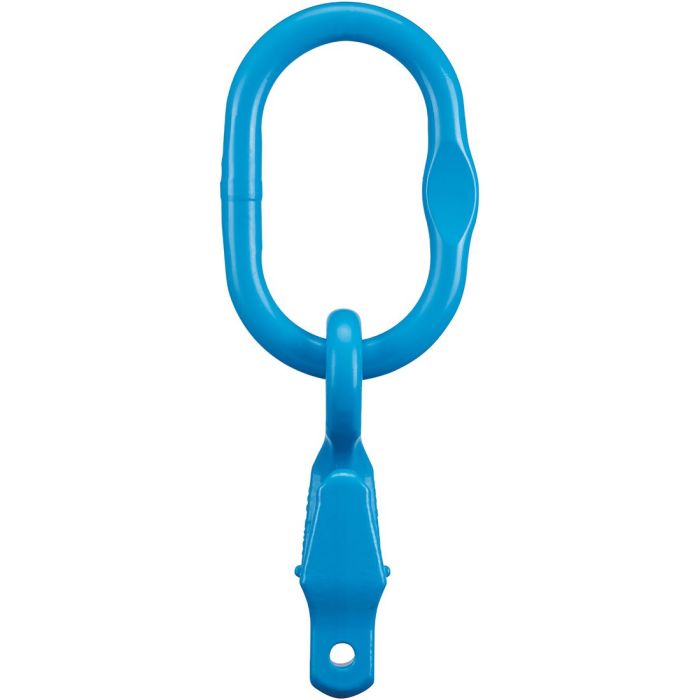

Yoke X-A04 Grade 100 GrabEX 1-Leg Master Link Assembly 1/4″ (WLL 3080 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677 and ASTM A952/ A 952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C
• Fully integrated shortening clutch and master link
• No redution in WLL when shortening chain
• Speedy assembly, light weight system

Specifications:

• 1-Leg Chain Sling Size: 6mm (1/4″)
• Working Load Limit (WLL): 1.40 tons (3080 lbs)

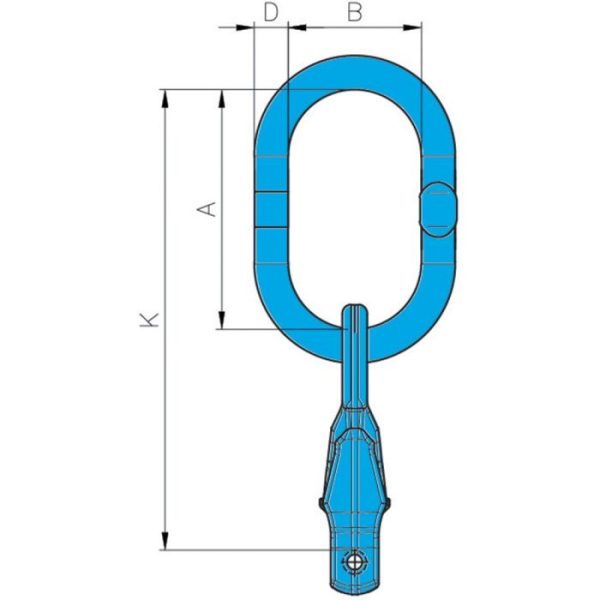

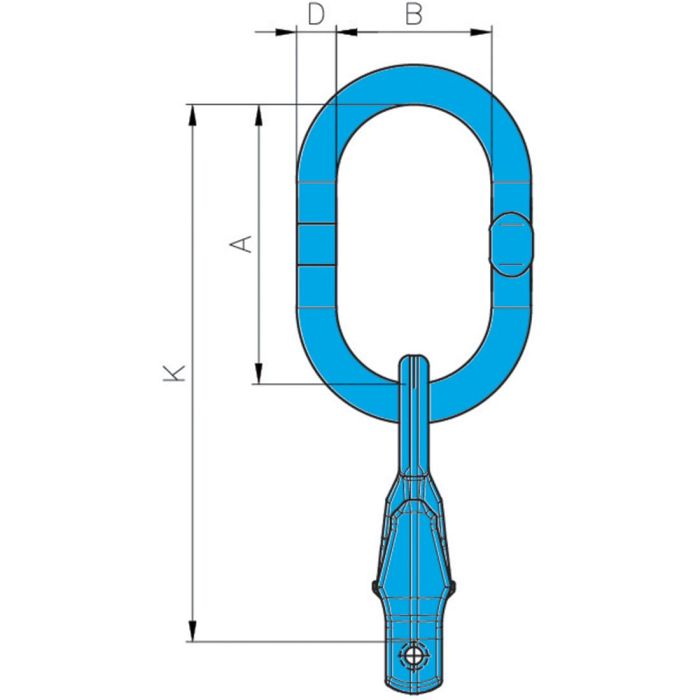

• Size (link thickness): 13mm (1/2″)
• Inside Length (A): 120mm (4.72″)
• Inside Width (B): 70mm (2.76″)
• (K): 196mm (7-5/8″)
• Design Factor 4:1
