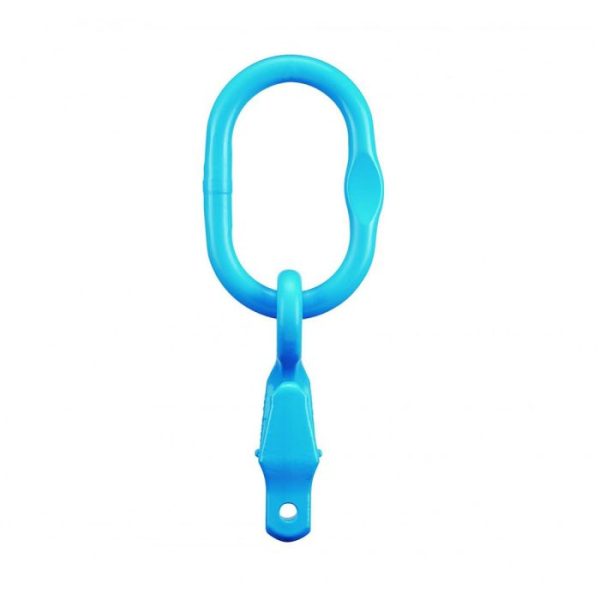

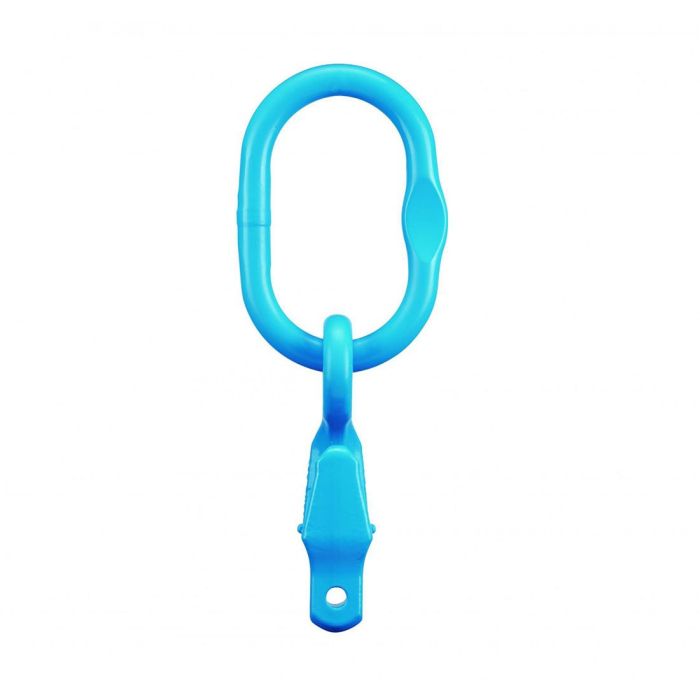

Yoke X-A04 Grade 100 GrabEX 1-Leg Master Link Assembly 5/16″ (WLL 5500 lbs)

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677 and ASTM A952/ A 952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C
• Fully integrated shortening clutch and master link
• No redution in WLL when shortening chain
• Speedy assembly, light weight system

Specifications:

• 1-Leg Chain Sling Size: 8mm (5/16″)
• Working Load Limit (WLL): 2.50 tons (5500 lbs)
• Size (link thickness): 16mm (0.6″)
• Inside Length (A): 140mm (5-1/2″)
• Inside Width (B): 80mm (3-1/7″)
• K: 242mm (9.5″)
• Design Factor 4:1
