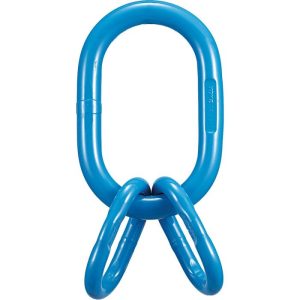

Yoke X-A05 Grade 100 GrabEX 2-Leg Master Link Assembly 5/8″ (WLL 30,800 lbs )

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 products
• Manufactured in accordance with EN 1677 and ASTM A952/ A 952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature at a minimum of 400°C
• Fully integrated shortening clutch and master link
• No redution in WLL when shortening chain
• Speedy assembly, light weight system

Specifications:

• Fits Chain Size: 16mm (5/8″)
• Working Load Limit (WLL): 14.00 tons (30,800 lbs)
• Size (link thickness): 32mm (1.3″)
• Inside Length (A): 230mm (9″)
• Inside Width (B): 130mm (8″)
• K: 432mm (17″)
• Design Factor 4:1
