Features:
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677 and ASTM A952/ A 952M
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature at a minimum of 400°C

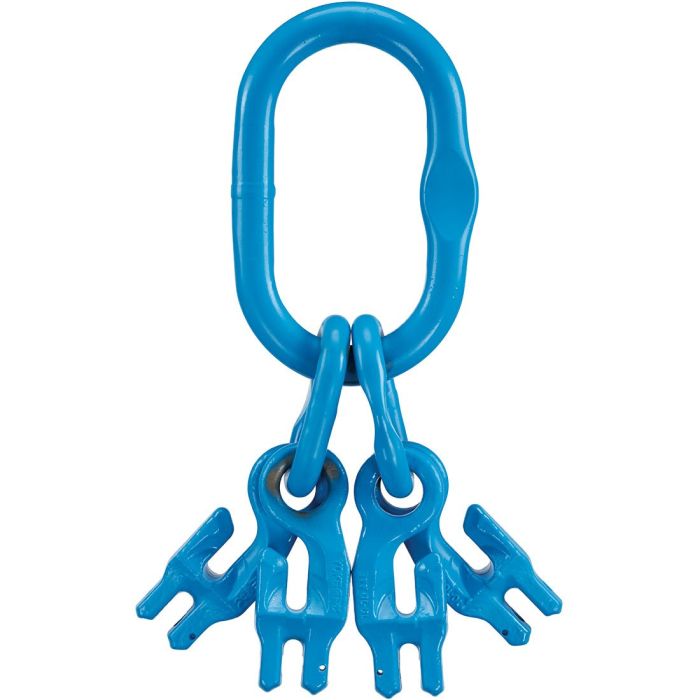

- Fully integrated shortening clutch and master link
- No redution in WLL when shortening chain
- Speedy assembly, light weight system
Specifications:
- Fits Chain Size: 6mm (1/4″)
- Working Load Limit (WLL): 2.90 tons (6380 lbs)
- Size (link thickness): 19mm (3/4″)
- Inside Length (A): 160mm (6.30″)
- Inside Width (B): 95mm (3.74″)
- (K): 290mm (11-3/8″)
- Design Factor 4:1
