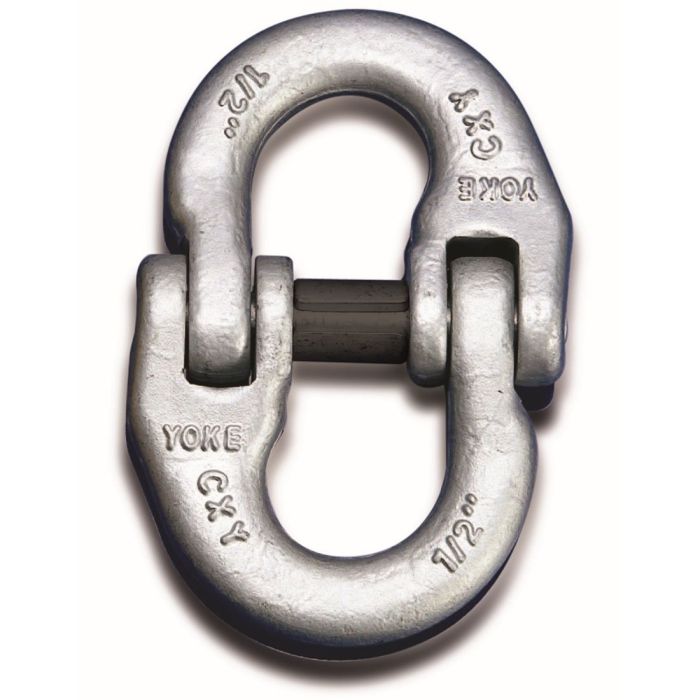

Yoke X-M015 Grade 100 Connecting Link 1/4″-5/16″ (WLL 5511 lbs)

Yoke X-M015 G-100 Connecting Link is designed for attaching chain to fittings and hardware. This connecting link is suitable for use with both Grade 80 and Grade 100 chain.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 product
• Manufactured in accordance with EN 1677- 1 and ASTM A952/ A952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Dacromet surface finish for enhanced corrossion resistance

Specifications:

• Fits Chain: 7mm – 8mm (1/4″-5/16″)
• Working Load Limit (WLL): 2.50 tons (5511 lbs)

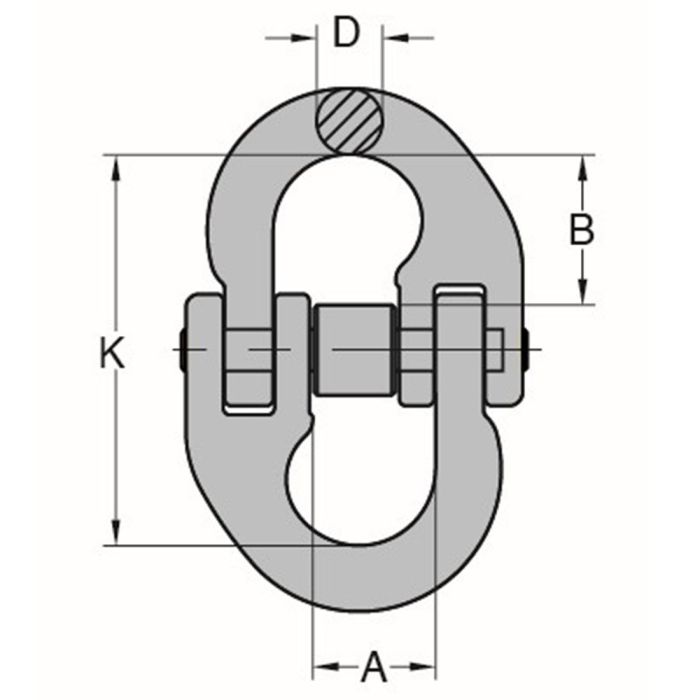

• (A): 18mm (11/16″)
• (B): 25mm (1″)
• (D): 9mm (3/8″)
• (K): 59mm (2-5/16″)
• Material: Alloy Steel
• Finish: Dacromet
• Design Factor 4:1
