Yoke X-M015 Grade 100 Connecting Link 3/8″ (WLL 8818 lbs)

Yoke X-M015 G-100 Connecting Link is designed for attaching chain to fittings and hardware. This connecting link is suitable for use with both Grade 80 and Grade 100 chain.

Features:

• Quenched and Tempered Alloy Steel
• At least 25% greater WLL than traditional G80 product
• Manufactured in accordance with EN 1677- 1 and ASTM A952/ A952M
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Dacromet surface finish for enhanced corrossion resistance

Specifications:

• Fits Chain: 10mm (3/8″)
• Working Load Limit (WLL): 4.00 tons (8818 lbs)

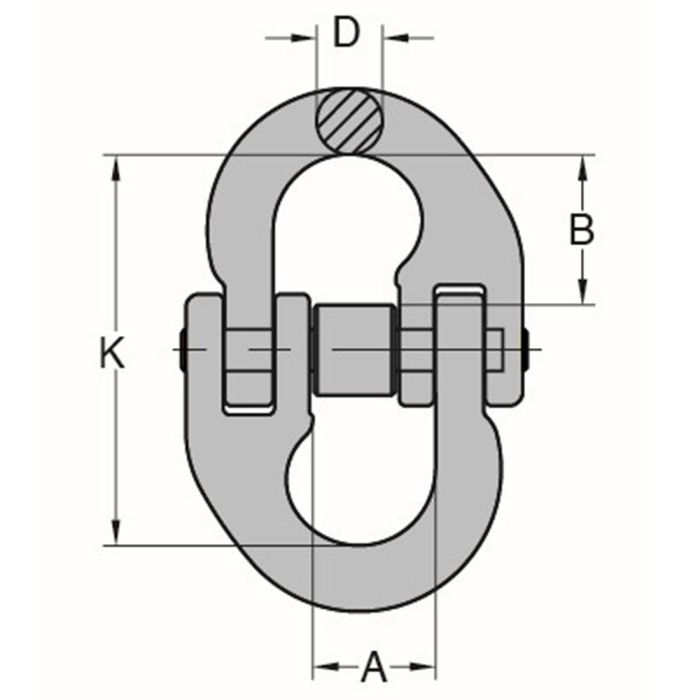

• (A): 25mm (1″)
• (B): 28mm (1-1/8″)
• (D): 11mm (7/16″)
• (K): 69mm (2-11/16″)
• Material: Alloy Steel
• Finish: Dacromet
• Design Factor 4:1
